according to the standards or specifications of the client

Thermal shock testing benches of liquid are used to make sudden changes in temperature, generally, pipes through which fluids circulate are tested.

Their has the ability to generate liquid flow (water, glycol, gasoline, kerosene) with fluid temperature control and with leak detection.

They are made for testing heatings, condensers, evaporators, water/glycol ducts, etc.

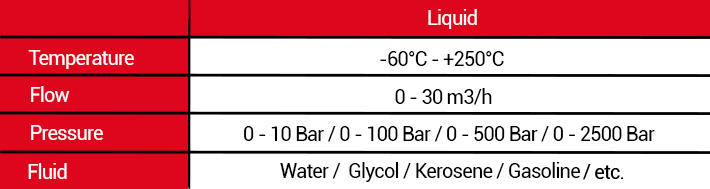

Characteristics
From 150 L to 6000 L
-60°C to +250°C
Fluid: water, glycol, gasoline, kerosene, etc.
Standards

EN 13310, EN 14688, EN 14527, EN 14516, IEC -60068-3-5, EN-12293, EN-15875.

. . .

The equipment consists of two independent circuits, one for cold water and one for hot water, formed by two 200-litre temperature-controlled tanks. They have an independent water recirculation system for each one. The equipment allows the water flow, temperature and water level of each tank to be regulated through the control system.

Exterior: Made of white lacquered aluminium sheet.

  • Mobility: 4 wheels for easy mobility.

Interior: Made of AISI-304 stainless steel.

Reserve tank: 15-litre capacity liquid reserve tank, accessible from the front of the unit for easy filling

The touch screen PC has the PROCAM-WIN installed. It is easy and intuitive software which performs programming tasks, acquisition, records, control and analysis of the results.

  1. Manual or automatic programming
  2. Possibility of programming date and time of the test
  3. It allows recording notes during the tests
  4. Different access levels
  5. Maximum 11 operators
  6. Display and recording of tests in a graphical or tabular table
  7. Export to Excel or similar
  8. The setting of minimum and maximum alarms for temperature and humidity for each section
  9. It includes recording screens, incidences and maintenance.
