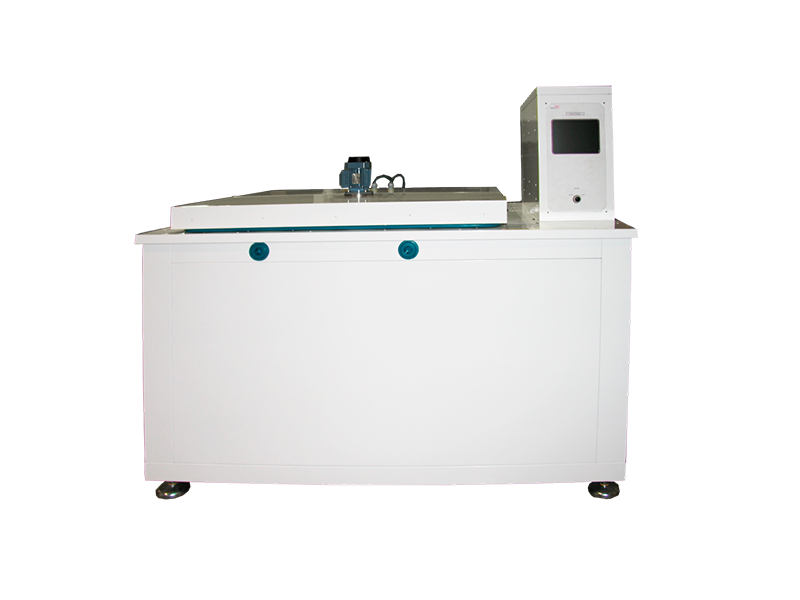

Horizontal frost and defrost chamber
to carry out frost resistance tests
The frost–defrost cycle chambers are designed to perform frost resistance tests, simulating automated freeze-thaw cycles according to international standards.
Its temperature range is -30°C and can go up to +50°C and it has two possible volumes 325 and 525 litres. They are mainly used in the construction sector, such as tile, slate, marble, brick, etc. manufacturers.
At Ineltec, we design and manufacture customized equipment according to specifications, modifying or extending the standard features. Frost and de-frost Chambers could be horizontal and vertical.
UNE-EN 10545-12 | UNE 67028 EX | UNE-EN 539-2 | UNE-EN 1343 | UNE-EN 12326-2 | UNE 438-2 | UNE-EN 1341 | UNE EN 1348 | UNE-EN 12371 | UNE-EN 491 | UNE-EN 1342 | UNE-EN 1367-1 | UNE 67048 | UNE-EN 494 | NF P18-425 | NF P18-424 | etc.
- Temperature range: -30ºC up to + 50ºC
- Vol. Litres: 325 L and 525 L
- Temperature gradient: Cold 1,5°C and Heat 2°C air
- Accuracy : Temp. ±0,1ºC max.
- Homogeneity: Temp. ±0,5ºC max.
Other features on request
Exterior: It is made of white lacquered aluminium sheet.
- Furniture base: 4 height adjustable support legs in the chamber and tank with 6.
- Top cover: Automated door opening and closing system through two pneumatically operated cylinders, with an 85º opening angle. Double weatherstrip with flexible silicone gasket.
Interior: It is made of AISI-304 stainless steel sheet.
- Sample holder: Specimen holder element for positioning 12 specimens, 50 mm apart.
Insulation: Through semi-rigid rock wool panels in accordance with EN 12667. Coefficient of thermal conductivity: 0.017 Kcal/m² h °C
- Thermal tank: A thermal tank is installed, inside which are installed the condensing unit, plate heat exchanger, recirculation pump, electrical control and power cabinet, water tank, cooling unit, heating system, etc.
Dimensions: (HxWxL)
| Volume | 325 L | 525 L |
| Inside dimensions | 750 x 700 x 600 | 750 x 1000 x 700 |
| Outside dimensions | 1200 x 2000 x 1000 | 1200 x 2000 x 1300 |
Approximately, as it depends on the temperature range, the outer dimension may be larger.
