Liquid pulsating pressure
according to the needs or specifications of the client
Pulsating pressure testing benches are custom designed and manufactured. They are used to apply pressure to samples and check when they are fatigued.

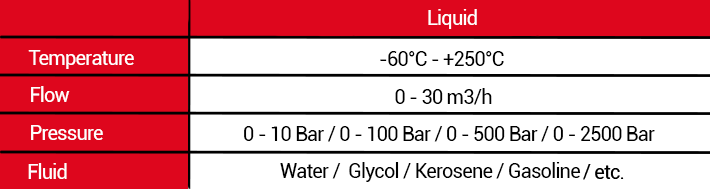

Their has the ability to generate liquid flow (water, glycol, gasoline, kerosene) with fluid temperature control and with leak detection.
They are made for testing heatings, condensers, evaporators, water/glycol ducts, etc.

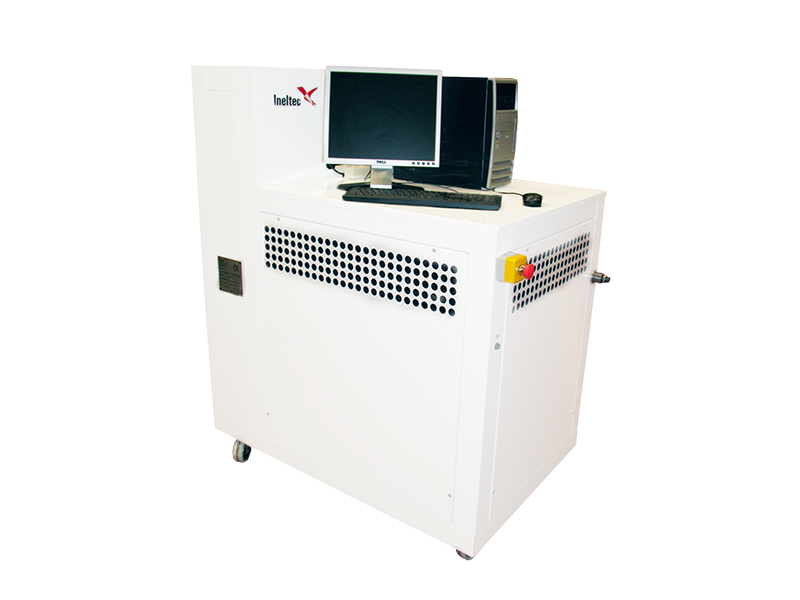

Exterior: Made of white lacquered aluminium sheet.
- Mobility: 4 wheels for easy mobility.
Interior: Made of AISI-304 stainless steel.
Reserve tank: 15-litre capacity liquid reserve tank, accessible from the front of the unit for easy filling.
The touch screen PC has the PROCAM-WIN installed. It is easy and intuitive software which performs programming tasks, acquisition, records, control and analysis of the results.
- Manual or automatic programming
- Possibility of programming date and time of the test
- It allows recording notes during the tests
- Different access levels
- Maximum 11 operators
- Display and recording of tests in a graphical or tabular table
- Export to Excel or similar
- The setting of minimum and maximum alarms for temperature and humidity for each section
- It includes recording screens, incidences and maintenance.
