to check the degree of rain protection of a sample.

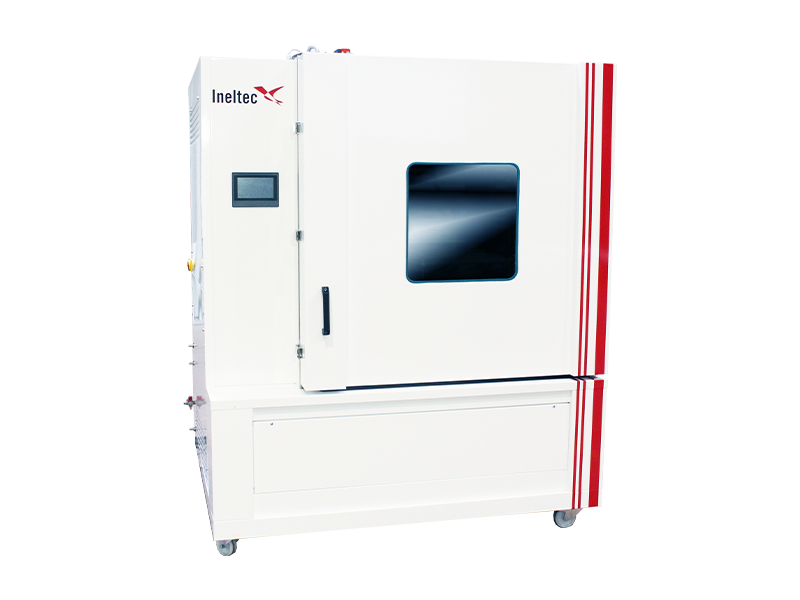

Splash Water chambers, from the CSPL series, perform tests to check the degree of protection against rain on a sample, normally watertight parts that will remain outdoors. They are mainly used in the electronics, construction, military, lighting, automotive and other sectors

We have 3 models of equipment, with three different capacities, which allow us to carry out water tightness, immersion, and thermal shock tests (ice water shock test). This latest model allows accelerated ageing, sealing and thermal shock tests to be carried out.

At Ineltec, we design and manufacture customized equipment according to customer specifications, modifying or extending the standard features. If you want to know more about the IP protection index, read this article.

50, 1000 and 2000 L
Connection voltaje and power 400 VAC III + N + TT | 50 Hz
Max. power consumption 7 (500 L), 10 (1000 L) and 12 (2000 L)

ISO 16750-4, IEC 60068, ISO 20653

Splash Water
. . .

We have 3 models of equipment for the Ice water shock test (designed to perform accelerated ageing, water tightness and thermal shock tests) with 3 different capacities:

  • SPLASH WATER METHOD: water spraying system inside the cabin
  • IMMERSION TEST: contain a water tank below the cabinet where the sample is immersed.
  • SPLASH WATER METHOD AND IMMERSION TEST: Equipment to carry out both tests

Exterior: Made of white lacquered aluminium sheeting

  • Access door: There is a window in the door to visualise the arch and the rotating test platform.
  • Mobility:  The machine has 4 multidirectional wheels with a braking device.

Interior: Made of AISI-304 stainless steel.

Dimensions: (HxWxL)

Volume 500 L 1000 L 2000 L
Inside dimensions 800x800x800 1000x1000x1000 1300x1500x1000
Outside dimensions 1800x1200x1500 1900x1400x1500 2000x2000x1600

The touch screen PC has the PROCAM-WIN installed. It is easy and intuitive software which performs programming tasks, acquisition, records, control and analysis of the results.

  1. Manual or automatic programming
  2. Possibility of programming date and time of the test
  3. It allows recording notes during the tests
  4. Different access levels
  5. Maximum 11 operators
  6. Display and recording of tests in a graphical or tabular table
  7. Export to Excel or similar
  8. The setting of minimum and maximum alarms for temperature and humidity for each section
  9. It includes recording screens, incidences and maintenance.
