according to IPX 3-4 degrees of protection

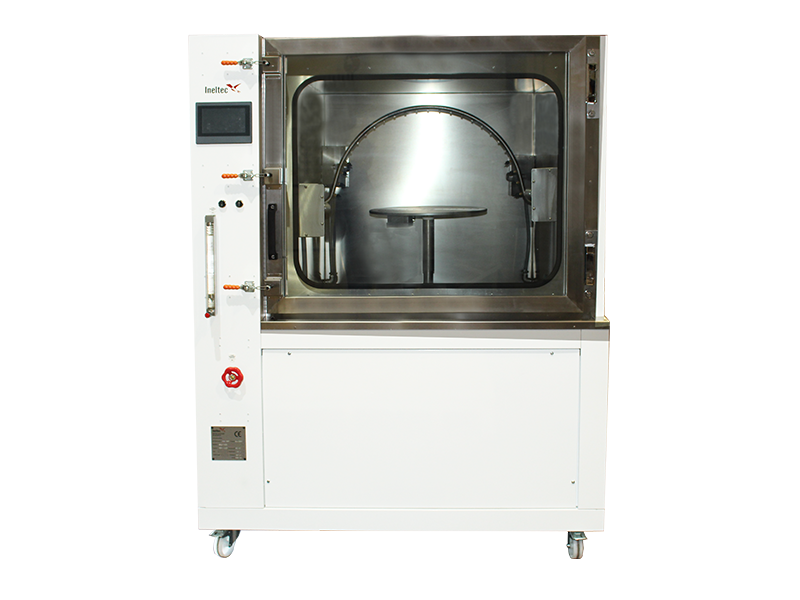

The CELL series rain tightness chambers test the degree of protection against the rain that a sample has, normally sealing pieces that will remain outdoors.

The equipment volume could be of 500, 1000 and 2000 Litres for other sizes please consult us. Rain chambers are mainly used in electronics, construction, military, lighting, automotive and other sectors.

At Ineltec, we design and manufacture customized equipment according to customer specifications, modifying or extending the standard features. If you want to know more about the IP protection index, read this article.

500,1000 and 2000 litres
Connection voltage and power 230V TT 50 Hz
Maximum Power Consumption 1,5 Kw

IEC 60529, DIN 40050-9, CEI 60529, UNE 20324, Protección IPX3, protection IPX4, IPX1, IPX2, among others.



  • Access door: Double weatherstrip with flexible silicone seal, sized according to chamber volume.
  • Viewing window: A viewing window is located in the door to view the arch and the rotating Test platform.
  • Mobility: The machine has 4 multidirectional wheels with a braking device.

Interior: Made of stainless steel AISI-304 Interior

  • Test platform: 500mm diameter, circular type, height adjustable and programmable in rotation speed.
  • Access holes: 1 side access port Ø 50mm (others on request).
  • Rain arch: Made of AISI-304 quality stainless steel tube, 400mm radius.

Dimensions: (HxWxL)

Volume 500 L 1000 L 2000 L
Inside dimensions 800 x 800 x 800 1000 x 1000 x 1000 1250 x 1250 x 1250
Outside dimensions 1800 x 1200 x 1100 1950 x 1500 x 1400 200 x 1700 x 1500
