to simulate environmental conditions of heat, cold and humidity

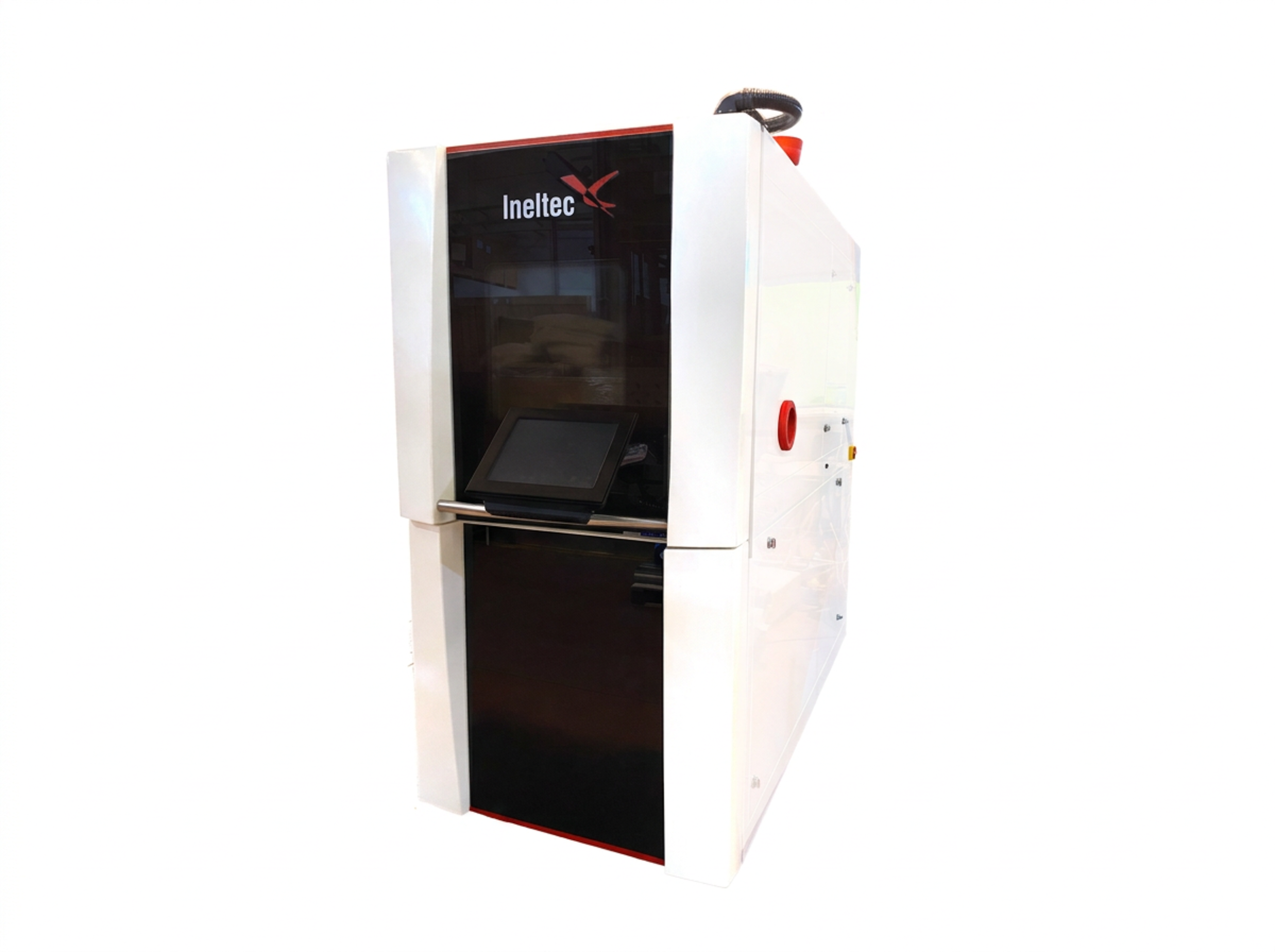

The compact thermal and climatic chambers of series INECF and INECC are able to simulate environmental conditions and accelerate the life cycle of products with in order to know the quality of your samples.

The maximum temperature range in standard models is -70ºC and can reach up to +180ºC, the volume of the equipment can be from 150 Liters to 2000 Liters, for other measurements please consult us.

Thermal or climatic chambers are used in all industrial sectors, as they comply with testing standards of products or materials.

At Ineltec, we design and manufacture customized equipment according to customer specifications, modifying or extending standard features. There is the possibility to carry out combined test chambers (with solar radiation or pulsating pressure)

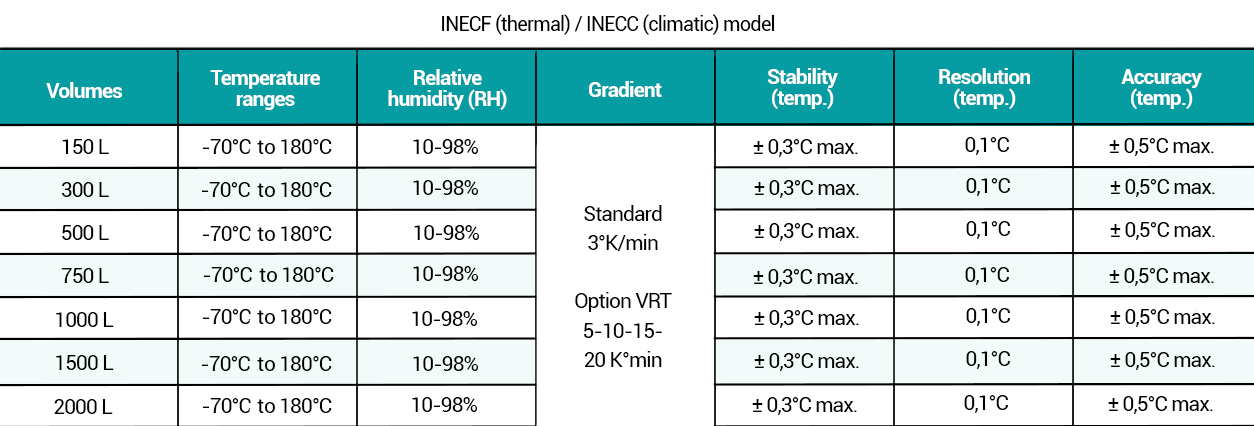

Characteristics
from 150 L to 2000 L
from -70ºC to + 180ºC
10-98%
Air /water cooling
Remote control software
Standards

DIN, ISO, ASTM, UNE, MIL, VDA, AENOR, STD, IEC, ICH, FDA, IEC 60068

. . . .

Exterior: It is made of white lacquered aluminium sheet.

  • Access door: Flexible double silicone gasket, sized according to chamber volume.
  • Viewing window: Tempered Multi-crystal, 10 vacuum sealed glass panels, size according to chamber volume.
  • Mobility: 4 swivel wheels with 2 braking devices or 4 height-adjustable legs.

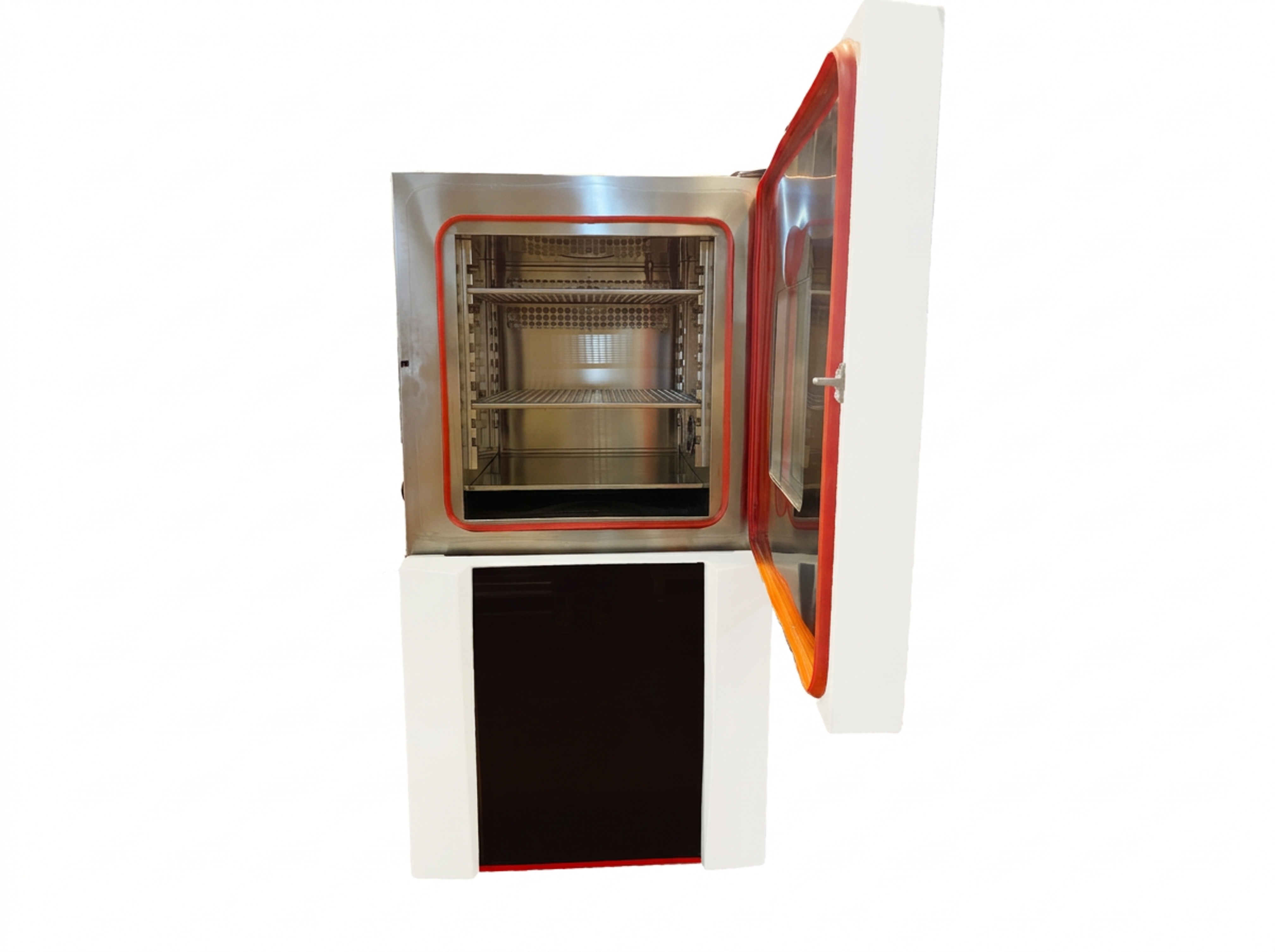

Interior: It is made of AISI-304 stainless steel.

  • Interior lighting: Fluorescent with interior projection.
  • Access Holes 1 side wall hole Ø 50mm (others on request)
  • Accessories: 2 sample-holding trays made of perforated stainless steel plate, adjustable in height. Max weight 50 Kg ( others on request)

 Insulation

  • Density 41 kg/m3
  • Coefficient of thermal conductivity: 0,0136 Kcal/m. hºC
  • Coefficient of thermal transmission
  • Completely waterproof and resistant to corrosive attack by acids and alkalis

Dimensions(HxWxL)

Volume 150 L 300 L 500 L 750 L 1000 L 1500 L
Inside dimensions 600 x 600 x 500 700 x 700 x 600 800 x 800 x 800 1000 x 900 x 850 1000 x 1000 x 1000 1000 x 1500 x 1000
Outside dimensions 1800 x 800 x 1400 1900 x 1000 x 1500 2000 x 1100 x 1500 2200 x 1200 x 1700 2200 x 1300 x 1700 2200 x 1800 x 2500

The touch screen PC has the PROCAM-WIN installed. It is easy and intuitive software which performs programming tasks, acquisition, records, control and analysis of the results.

  1. Manual or automatic programming
  2. Possibility of programming date and time of the test
  3. It allows recording notes during the tests
  4. Different access levels
  5. Maximum 11 operators
  6. Display and recording of tests in a graphical or tabular table
  7. Export to excel or similar
  8. Setting of minimum and maximum alarms for temperature and humidity for each section
  9. It includes recording screen, incidences and maintenance.
