Climatic Walk-In chamber
they are developed for large-sample testing
The walk-in compact climatic or thermal chambers are used to perform tests on big samples. They are used to perform tests of controlled temperature and humidity (Cold/Heat and Humidity) on large sizes of samples. There is the possibility to install solar radiation, UV, as well as other options (snow, rain, wind, etc.).
Temperature ranges are from -70C to +180ºc, and volume could be from 2.000 L to 30.000 L, for other measures please contact us. The chambers have a double safety locking system, a load capacity of 2,000 kg/m² and air/water cooling.
Thermal or climatic chambers are used in all industrial sectors, as they comply with testing standards for any product or material.
At Ineltec, we design and manufacture customized equipment according to customer specifications, modifying or extending standard features. We also manufacture modular climatic chambers to adapt to your needs.
DIN, ISO, ASTM, UNE, MIL, VDA, AENOR, STD, IEC, ICH, FDA, IEC 60068
- Temperature ranges: from -70ºC to +180ºC
- Relative humidity: 10-98%
- Volume: from 2.000 L
- Air /water cooling
- Doble safety lock system
- Load capacity of 2000 kg/m2
- Gradients are according to the Standard IEC 6006-3-5 Cooling at 3 ºc/min and heating 3 ºc/min
Exterior: It is made of white lacquered aluminium sheet.
- Access door: Flexible double silicone gasket, sized according to chamber volume.
- Viewing window: Tempered Multi-crystal, 10 vacuum sealed glass panels, size according to chamber volume.
- Mobility: 4 swivel wheels with 2 braking devices or 4 height-adjustable legs-
Interior: It is made of AISI-304 stainless steel.
- Interior lighting: Fluorescent with interior projection.
- Access Holes 1 side wall hole Ø 50mm (others on request)
- Accessories: 2 sample-holding trays made of perforated stainless steel plate, adjustable in height. Max weight 50 Kg ( others on request)
Insulation:
- Density 41 kg/m3
- Coefficient of thermal conductivity: 0,0136 Kcal/m. hºC
- Coefficient of thermal transmission
- Completely waterproof and resistant to corrosive attack by acids and alkalis

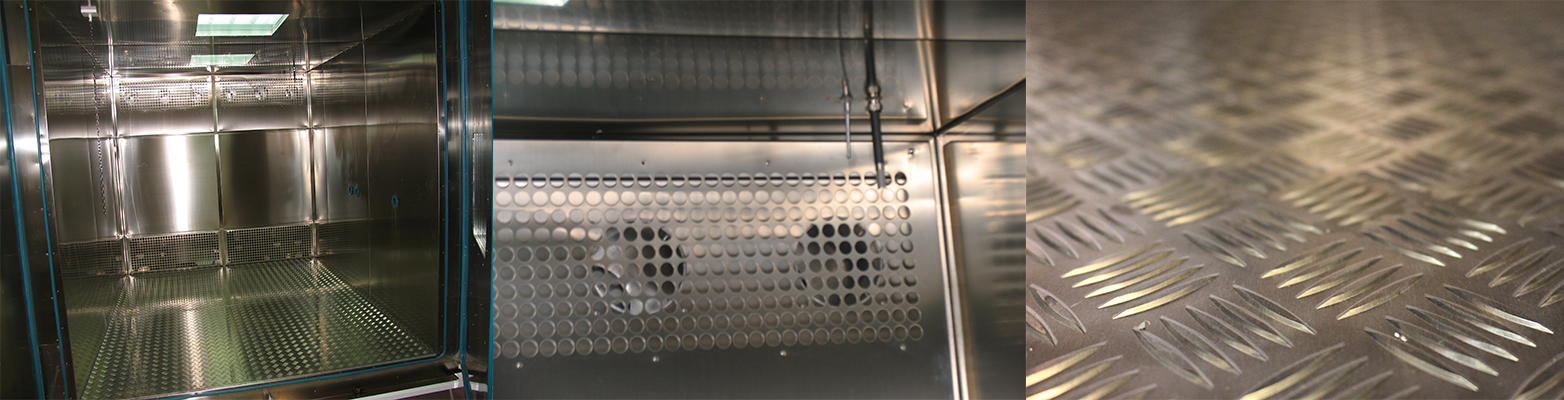

Internal details and finishes
The touch screen PC has the PROCAM-WIN installed. It is easy and intuitive software which performs programming tasks, acquisition, records, control and analysis of the results.
- Manual or automatic programming
- Possibility of programming date and time of the test
- It allows recording notes during the tests
- Different access levels
- Maximum 11 operators
- Display and recording of tests in a graphical or tabular table
- Export to excel or similar
- Setting of minimum and maximum alarms for temperature and humidity for each section
- It includes recording screen, incidences and maintenance.
