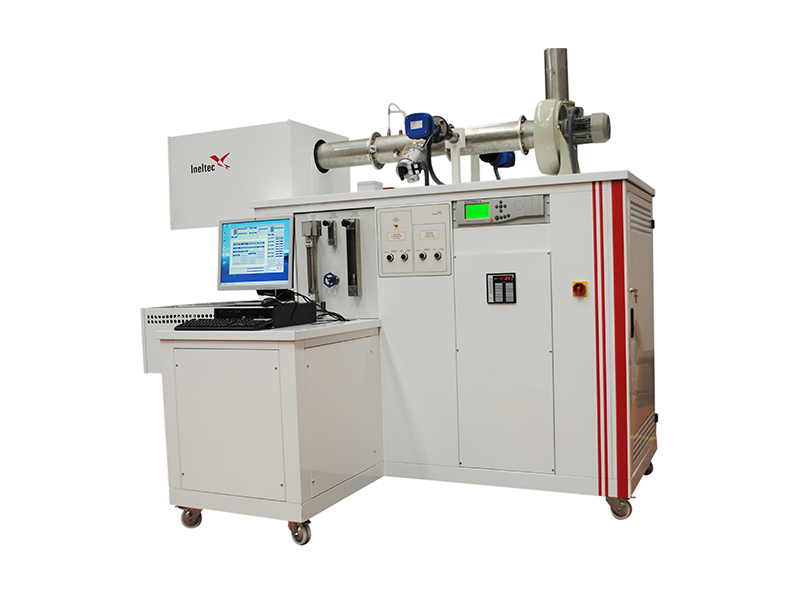

Fire propagation apparatus

to measure fundamental material characteristics and fire spread by measuring the critical heat flux

The Fire Propagation Apparatus (FPA) is designed to measure the fundamental properties of materials during fire propagation by measuring the critical heat flux.

Material characteristics that are quantified include ignition time, effective heat of combustion, critical heat flux, thermal response and propagation index for horizontal samples.

The equipment is not suitable for testing materials which change from solid to liquid during the test. This test is used to measure and characterise the response of materials subjected to heat and fire under controlled conditions.

ASTM E2058,  ANSI FM 4910.


ASTM E2058,  ANSI FM 4910


The touch screen PC has the PROCAM-WIN installed. It is easy and intuitive software which performs programming tasks, acquisition, records, control and analysis of the results.

  1. Manual or automatic programming
  2. Possibility of programming date and time of the test
  3. It allows recording notes during the tests
  4. Different access levels
  5. Maximum 11 operators
  6. Display and recording of tests in a graphical or tabular table
  7. Export to excel or similar
  8. Setting of minimum and maximum alarms for temperature and humidity for each section
  9. It includes recording screen, incidences and maintenance.
