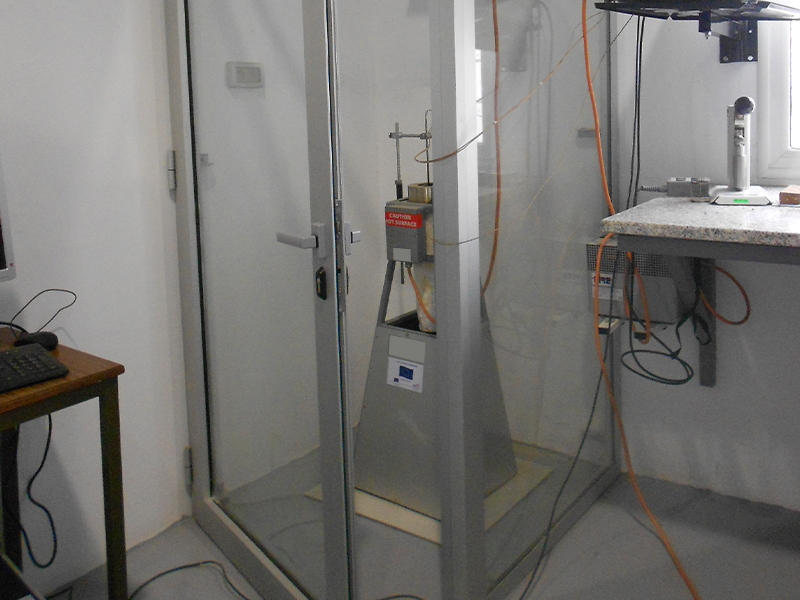

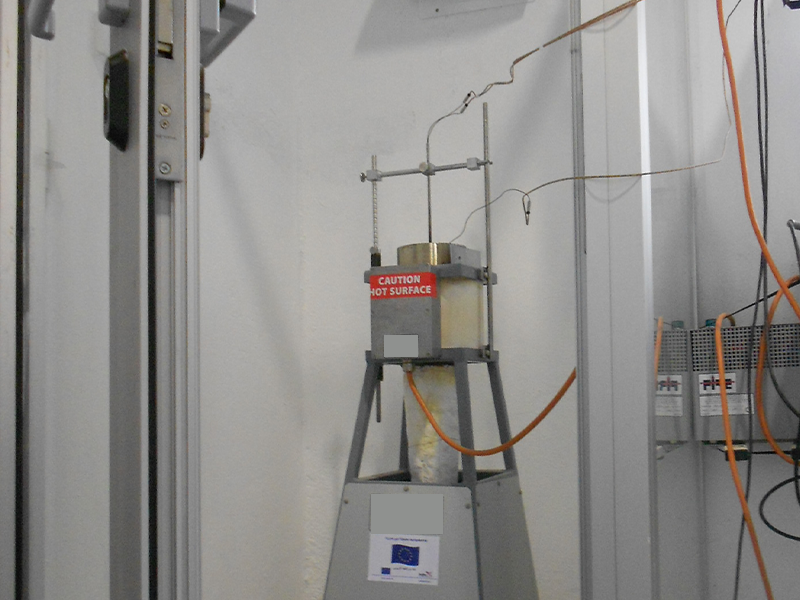

Non-combustibility furnace
causes the ignition of the gases emitted and the propagation of combustion
The non-combustible furnace (ISO 1182) is automated through the use of power electronics, which makes it easy to use and considerably extends the furnace's endurance.
With the equipment, we can observe the potential combustion of the test sample with temperature increases and/or visible flames. The mass loss of the sample to be tested is calculated after the test These parameters are used to decide whether the product is non-combustible or not.
Characteristics
Maximum operating temperature 900°C
Temperature controller
Overheating alarm
Energy controller
Standards
ISO 1182:2011, IMO 2010 FTP Code Part 1, ASTM E2652-12
.
The touch screen PC has the PROCAM-WIN installed. It is easy and intuitive software which performs programming tasks, acquisition, records, control and analysis of the results.
- Manual or automatic programming
- Possibility of programming date and time of the test
- It allows recording notes during the tests
- Different access levels
- Maximum 11 operators
- Display and recording of tests in a graphical or tabular table
- Export to excel or similar
- Setting of minimum and maximum alarms for temperature and humidity for each section
- It includes recording screen, incidences and maintenance.
